Desk – Splitter – Wireless

10 Giugno 2025

NSP MA 1/2 (Network Signal Processor)

Andrea Germoni Desk - Splitter - Wireless

MA NSP 1/2 (Network Signal Processor)

For decentralised DMX networks, the MA NSP (Network Signal Processor) converts the incoming Ethernet data into DMX512-A data. For data conversion, two Ethernet protocols are supported: MA-Net and Art-Net.

Data output is by means of four independent DMX connectors, two of which can also be configured as DMX inputs. The MA NSP features an intuitive menu structure, four function keys and an encoder wheel for easy configuration. A backlit LC-display with two lines of text shows all of the important information and the operating status. For professional application and maximum flexibility, the MA NSP is built in a 19” housing which is only 1U in height.
You may choose between different modes of operation when using the MA NSP. Depending on your application, a MA NSP can convert DMX inputs and outputs in an Ethernet network, serve as a DMX merger or booster.
In an MA System, the MA NSP can be used as a decentralised channel expansion for all grandMA consoles (except grandMA micro + grandMA pico). For this purpose, not only the DMX signals are distributed among the MA NSP, but so are all calculations necessary. With MA NSP, the grandMA console becomes a powerful multi-processor system. The fast, bidirectional data exchange between the grandMA console and the MA NSP ensures that DMX data output on all MA NSP units is perfectly synchronized. Each MA NSP can calculate 2,048 parameters. A maximum of 16 MA NSP can be used for the output of 64 DMX lines (32,768 channels).
In a network, several consoles share the MA NSPs available. This easily allows the shared use of DMX enabled devices as well as provides for a redundant mode of operation without additional components such as DMX mergers.
When used in a shared network with a grandMA lighting console and one or more MA NSPs, grandMA onPC becomes a full-tracking backup system for up to 16,348 parameters.

Pagina del produttore

19 Ottobre 2023

grandMA3

Andrea Germoni Desk - Splitter - Wireless, Ultimi arrivi

granMA3

Founded on the legacy of the previous grandMA consoles, the grandMA3 represents a radical re-think of what’s possible from a lighting control platform. The elegant new system-architecture incorporates new fixture, feature and effects-handling at its very heart.

The system features ground-breaking concepts from top industry visionaries, presented within a refined user interface, and is designed to make practical tasks more intuitive.

The physical design detail of the grandMA3 range is extraordinary and focused on delivering the best possible user experience, now and into the future.

Pagina del produttore

19 Ottobre 2023

grandMA2

Andrea Germoni Desk - Splitter - Wireless

granMA2

Founded on the legacy of the p

The grandMA2 light has 4,096 parameters, 15 motorized executor faders and two touchscreens available. All further features and controls are identical to those on the grandMA2 full-size.

The grandMA2 light is the perfect tool to control all kinds of lighting genres like conventionals, moving lights, LEDs, video and media. It supplies an intuitive and fast control of all connected fixtures and channels. The grandMA2 light can handle an almost infinite number of presets, cues, pages, sequences and effects. It is ideally suited as a standalone console or as a backup device for the grandMA2 full-size. Moreover grandMA series 1-showfiles can be converted to be used with the grandMA2.

All grandMA2 consoles are optionally available as Silent Version with optimised fan for noise-sensitive environments.

revious grandMA consoles, the grandMA3 represents a radical re-think of what’s possible from a lighting control platform. The elegant new system-architecture incorporates new fixture, feature and effects-handling at its very heart.

The system features ground-breaking concepts from top industry visionaries, presented within a refined user interface, and is designed to make practical tasks more intuitive.

The physical design detail of the grandMA3 range is extraordinary and focused on delivering the best possible user experience, now and into the future.

Pagina del produttore

QuickMAnual

19 Ottobre 2023

grandMA1

Andrea Germoni Desk - Splitter - Wireless

granMA1

The grandMA consoles are the core of the fully integrated MA system, offering versatility and flexibility for all kinds of applications – including theatre, musical events, concert touring, television, clubs, amusement parks or cruise ships.

Designed as a multi-media console, the grandMA is able to control – in the most elegant manner – moving lights, conventional effects, as well as LED fixtures and video – even when working in real time with maximum channel count. Add to all these capabilities real-time rendering visualization via grandMA 3D. The reliable and proven operational philosophy allows a direct, flexible and intuitive way of working.
The grandMA light is, essentially, a compact version of the full-size grandMA console. One color touch screen display, two external displays, ten motorized faders, 30+20 physical playback buttons (on 128 pages), an uninterruptible power supply and 2,048 DMX channels on-board, expandable to 4,096 DMX channels using an upgrade chip, still makes this a luxurious environment for any console programmer, but in a compact size. An ideal backup console to the full sized grandMA, the grandMA light is a powerful yet portable console that a single person can carry. The grandMA light has free visualization software, support for up to six remotes and up to 16,384 parameters with additional hardware for DMX universe expansion via NSP. A “light” grandMA console in name only.

Pagina del produttore

grandMAnual

19 Ottobre 2023

Compulite Spark

Andrea Germoni Desk - Splitter - Wireless

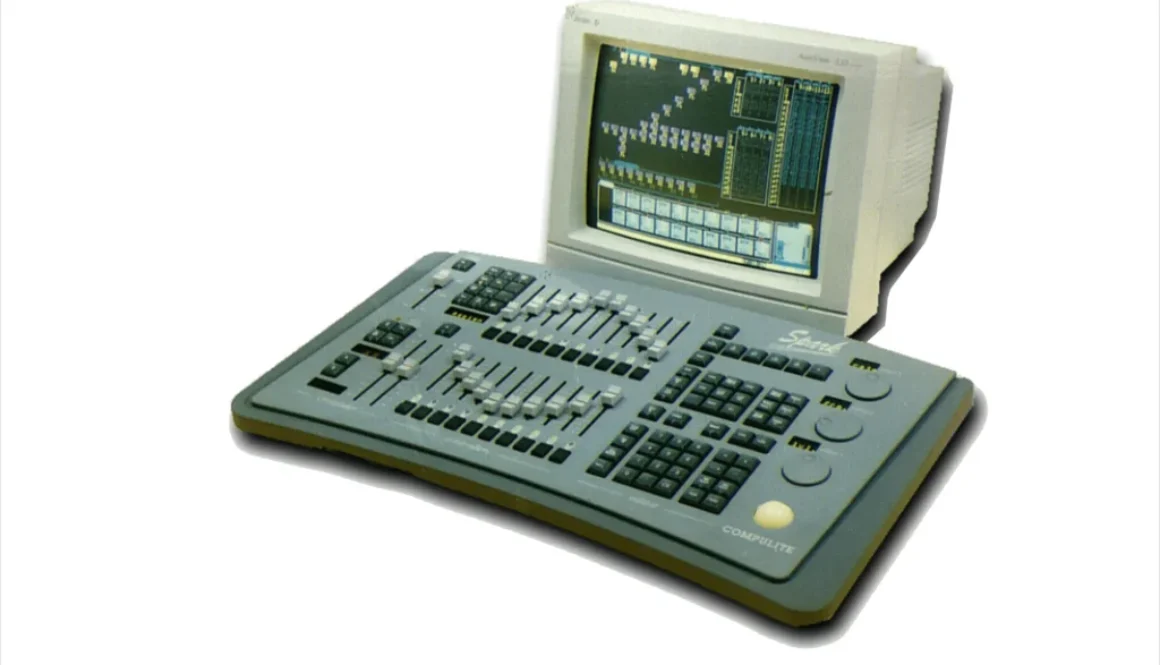

Spark

Spark is a compact lighting console suitable for television studios, theaters, discotheques, and small venues. Spark controls up to 240 channels, 48 color scrollers, and 512 dimmers on industry standard DMX. 512 channels are reserved for DMX controlled moving lights Direct high End protocol is also supported.
Soft Keys associated with the 20 controllers provide one press access to memories, groups of channels and/or spots, macros, snaps, and chasers. A convenient alphanumeric display keeps you up to date with the current Soft Key function displayed. Multi-colored LEDs give at-a-glance controller status information. Run up to 10 chasers (with conventional channels and moving lights) simultaneously. Easy to read displays on the color VGA monitor provide full information for controller assignments, chaser mode and chase rates, and much more.

Edit moving devices with the 3 parameter wheels organized into wheel banks. The trackball for pan and tilt is sensitivity adjustable.

Pagina del produttore

19 Ottobre 2023

SGM Pilot 3000

Andrea Germoni Desk - Splitter - Wireless

SGM Pilot 3000

L’EVOLUZIONE DEL CONTROLLER LUCI, Massima potenza, massimo controllo, minime dimensioni.

Le qualità che distinguono le piu’ grandi consolle luci racchiuse in soli 4 kg. SGM ha creato PILOT 3000, il controller dalle dimensioni straordinariamente ridotte,
compatto, maneggevole e leggerissimo, ma dotato di un software avanzato ed estremamente potente.Facilmente trasportabile e collocabile in qualunque contesto, offre funzionalità paragonabili a quelle di strumenti di grandi dimensioni, ma con l’ingombro e il costo che caratterizzano la categoria delle piccole consolle.Funzioni potenziate, disposizione logica ed innovativa dei comandi.
Fra le altre caratteristiche, alcuni elementi del software e dell’hardware rendono PILOT 3000 unico nel suo genere.

19 Ottobre 2023

Strand 200 12/24

Andrea Germoni Desk - Splitter - Wireless

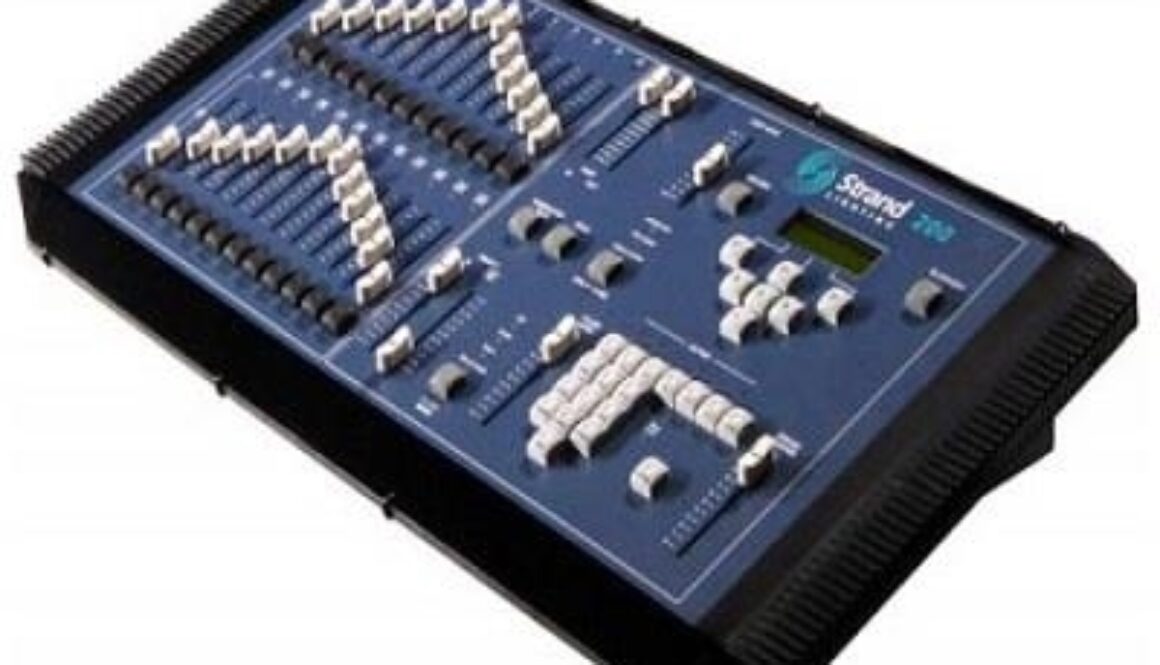

The Strand 200 12/24 Channel Lighting Control Console

The Strand 200 12/24 Channel Lighting Control Console is fully digital. It enables two scene control over 12 channels, or one scene control over 24 channels of your lighting design. LED indicators are on all controls.This step-up from the 100 series allows up to 24 effects each with 99 steps, a split cross fader with time fade function, and bump buttons on all channels.

19 Ottobre 2023

Strand 100

Andrea Germoni Desk - Splitter - Wireless

The Strand 200 12/24 Channel Lighting Control Console

This no-fuss lighting desk is ideal for small events, parties and shows or as a compliment to your existing set-up 12 channel, two pre-set mode 24 channel wide mode Cross-faders Cross fade timer Bump/Flash buttons Chase mode DMX 512 output [via 5pin cable supplied] Lighting control doesn’t get easier than this! Though don’t be fooled by its simplicity, the Strand 100 is a very versatile and powerful control desk. With a fader per channel you can control either 12 ways on two presets giving you full theatrical control, or widen the system to use 24 channels in stand-alone mode. In pre-set mode, there is an inverted cross-fader pair giving dip-less cross-fades and a timer to fully automate your lighting states. Bump buttons allow manual effects to be an easy task Also features a chase mode for more dynamic lighting Works on any DMX fixture, even LED and moving lights, and all DMX compatible dimmers [like the ones I have listed here!!]

19 Ottobre 2023

grandMA3 processing unit M

Andrea Germoni Desk - Splitter - Wireless

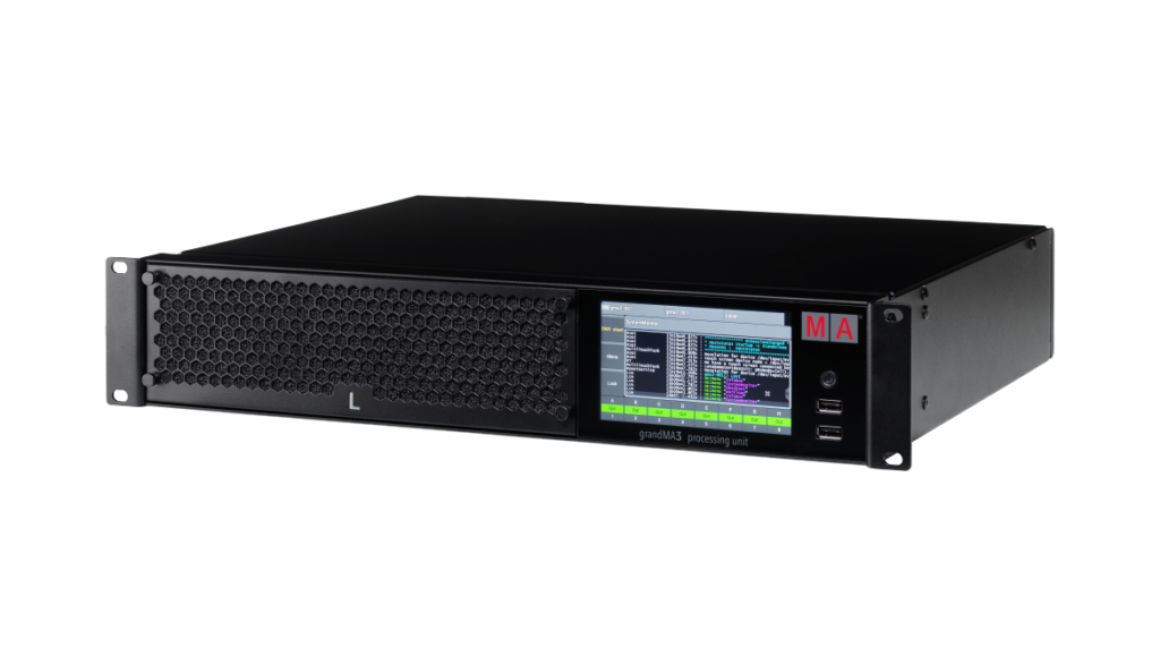

grandMA3 processing unit L

Expanding the grandMA3 system is simple with addition of grandMA3 processing units! The grandMA3 processing unit L expands the system by 8 192 parameters and offers frame-synchronous calculation of the parameters within the MA-Net3 environment. Designed for larger systems, the L model offers a more cost effective and compact solution for parameter expansion. Additionally, the grandMA3 processing unit L offers a Mode2 to expand existing grandMA2 systems by 4 096 parameters.
The grandMA3 processing units are designed for rack mounting and all models are only 2RU, allowing for efficient touring solutions. Each model is equipped with 8 DMX outputs for frame-synchronous DMX output throughout the network. Additional frame-synchronous DMX outputs are available with the addition of grandMA3 xPort Nodes.
grandMA3 processing units offer a perfect system overview on the integrated touchscreen. This easy access to important functions allows for best maintenance if installed in a dedicated rack whilst every function can be monitored from the grandMA3 session.
For larger systems it is suggested to keep the grandMA3 processing units in a centralized position for parameter expansion and to use grandMA3 xPort Nodes to distribute and output the frame-synchronous DMX data.

Pagina del produttore

19 Ottobre 2023

MA2 NPU M

Andrea Germoni Desk - Splitter - Wireless

MA2 NPU

The MA NPU (Network Processing Unit) unites the calculation power in the network and offers the same performance as the grandMA2 consoles. The MA NPU offers and handles 4,096 parameters.

With an easy to read touchscreen the MA NPU allows intuitive use and easy access to all the important information. 8 x DMX XLR 5-pin connectors on the rear side of the MA NPU allow a most flexible use within the network environment.

The MA NPU is the link between Ethernet and DMX controlled devices. The MA NPU adds processing power and parameters to the MA system. For decentralized DMX networks, the MA NPU converts incoming Ethernet data into DMX data. The converted data are transmitted via 8 independent DMX connectors, which can be configured as DMX inputs or outputs.

Within a network, several grandMA2 consoles share the available MA NPU devices. For parameter expansion the MA NPU shall be located in a centralized position, whereas MA xPort Nodes are used to distribute and output DMX data.This allows DMX devices being used by several consoles together, and it provides a redundant mode of operation without additional components such as DMX mergers.

Pagina del produttore
