Categoria per la sezione ultimi arrivi.

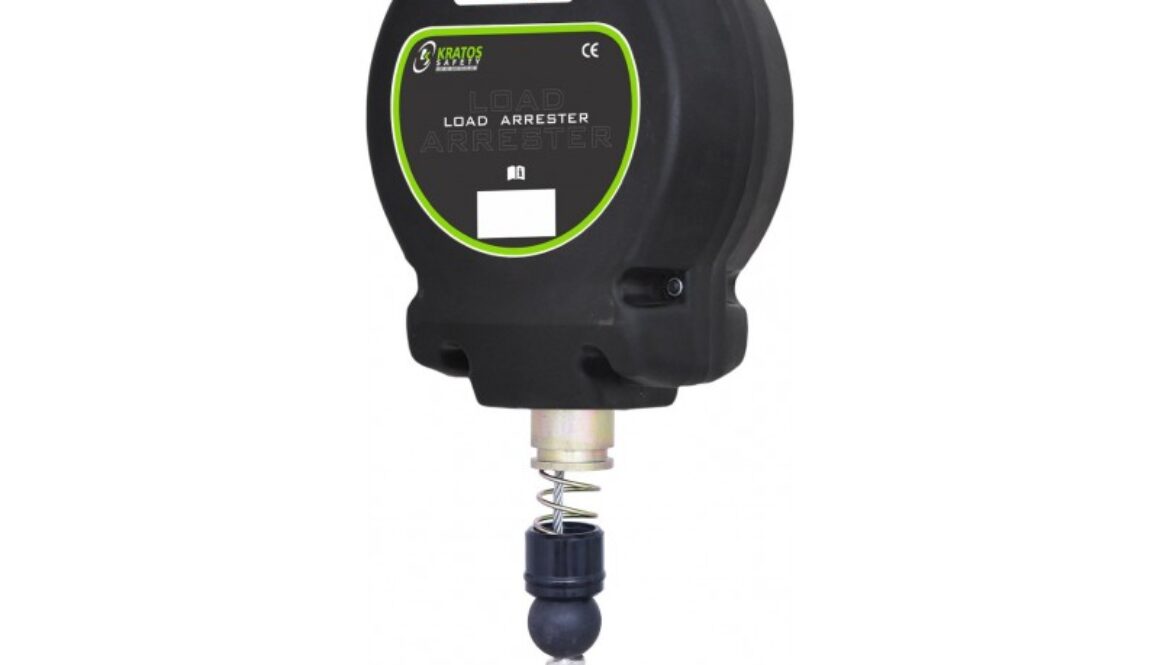

Dispositivo anticaduta per carichi con un peso massimo di 250 kg
Conformità : 2006/42/CE
Carter in polimero ad alta resistenza, praticamente indistruttibili.
Sistema di arresto rapido a più denti di arresto.
Assorbitore di energia integrato che riduce gli sforzi della struttura.
Distanza di arresto ridotta.

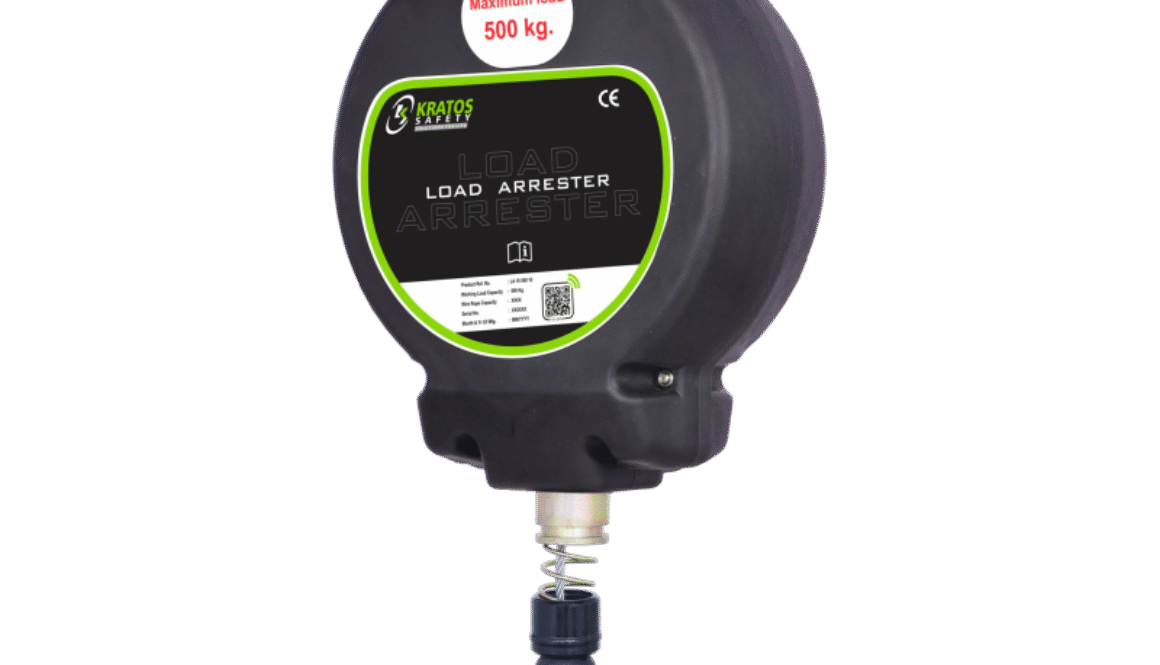

Dispositivo anticaduta per carichi con un peso massimo di 500 kg
Carter in polimero ad alta resistenza, praticamente indistruttibili.
Sistema di arresto rapido a più denti di arresto.
Assorbitore di energia integrato che riduce gli sforzi della struttura.
Distanza di arresto ridotta.
Paranco elettrico a catena, tensione diretta, corpo in alluminio, sistema di guida catena progettato per ridurre l’inceppamento, doppio gancio girevole.
Conforme alla linea guida IGVW SQP2
| Capacità di carico | 500 kg |
| Velocità di sollevamento a 50 Hz | 4m/min |
| Tensione di esercizio | 400V 50 Hz |
| Grado di protezione | IP 55 DIN 40050 |
| Potenza del motore a 50 Hz | 0,37 kW |
| CLASSE FEM | 2m |
| Sistema di Frenata in DC | 1 freno |
| Livello rumore | <67,5 dB (pieno carico) |
| Noce di carico | 6 alveoli |
| Catena di carico RUD® | 5×15 mm |
| Numero catene | 1 |
| Peso della catena | 0,54 kg / m |
| Peso del corpo macchina | 34 kg |
| Tipo di controllo | Controllo Diretto |
| Tipo di connettore | Spina Rossa | 400V CEE 16 A – 3P+T |
| Uso rovesciato | Consentito |
| Fattore di Sicurezza | 5:1 |
| Fine Corsa Stromag® a 4 interuttori | Opzionale |
CLUSTER B2 FC
A colori
La versione Full Color riproduce lo stesso aspetto utilizzando il suo LED bianco caldo in combinazione con RGB e ambra, per produrre lo stesso effetto tradizionale di accecamento, si abbina perfettamente alle nostre versioni a bianco caldo, offrendo inoltre una miscelazione completa dei colori e un bianco regolabile.
L’accecatore LED ROXX CLUSTER B2 FC è davvero all’altezza di un accecatore DWE convenzionale, pur consumando il 60% di energia in meno e sostituendo la necessità di installare lampade al tungsteno per oltre 500 volte.
CLUSTER B2 FC
Traliccio sezione quadra con piastra 29
Categoria : Serie P 30
Traliccio Quadro in alluminio con piastra, lato 29 cm
Informazioni Tecniche
Tubi correnti Ø 50×2 mm
Diagonali Ø 18×2 mm
Doppio Sistema di giunzione
Giunti in alluminio e spine coniche con copiglie, in alternativa viti e dadi M10
Finitura
Alluminio naturale o verniciatura personalizzata
Applicazioni
Ideale per installazioni fisse, allestimenti fieristici, studi televisivi, strutture per lo spettacolo
Disponibile nella versione HEAVY DUTY
Tubi correnti Ø 50×3 mm
Diagonali Ø 20×2 mm

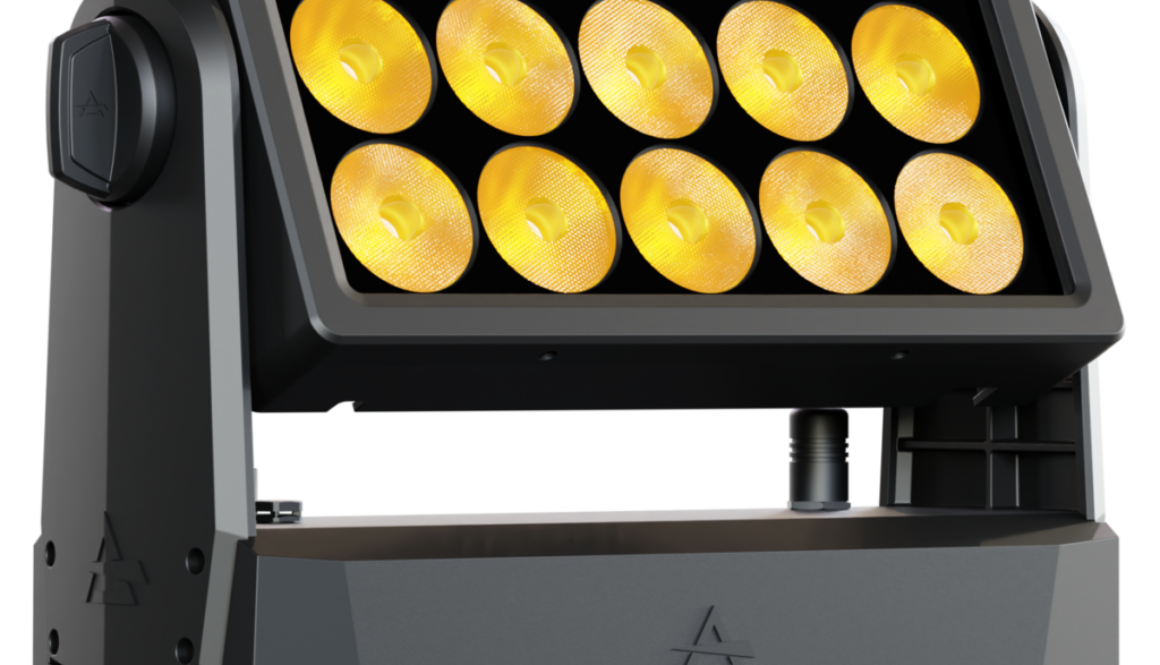

Proiettore 15x20W, IP65 con sorgente LED RGB + Warm White, controllo wireless a batteria o cavo
Smart BatWash è un Wash Light outdoor ad alta potenza, utilizzabile sia wireless che con cavo.
Questo proiettore IP65 ha 15 LED da 20W RGB + Warm White, SPEKTRA calibrato per garantire consistenza, alti valori di CRI (>93), una gamma dinamica di colori con preciso color mixing e un potente output di 6.282 lumen.
Smart BatWash è estremamente flessibile e può essere usato sia wireless a batteria inclusa (CRMX,W-DMX, e RDM) o, in alternativa, cablando dati e alimentazione, bypassando la batteria e offrendo alti livelli di luminosità.
il beam angle può essere facilmente modificato grazie e filtri magnetici permettendo un’ampia copertura mantendendo un potente output.
Smart BatWash offre tutte le caratteristiche software della famiglia Ecl, condividendone tutti i settaggi e possibilità
Make outdoor lighting complications and stress a thing of the past! Our nocompromise, self-maintaining, revolutionary iESPRITE® delivers consistent, hassle-free performance without complex maintenance procedures, whatever the weather or atmospheric conditions.
The IP65-rated iESPRITE® combines our latest protection technology with the highly desired ESPRITE® maintaining identical output and feature-rich effects in a fully protected package capable of handling all the challenges of outdoor environments.
Joining the Robe iSeries iESPRITE® again negates the traditional weight penalty associated with IP-rated fixtures having similar weight to the indoor ESPRITE®. With class-leading form factor, size and appearance, and all the features and identical performance of the indoor original, iESPRITE® once again enables seamless integration between models, even on the same truss if desired!
The ingenious ingress protection system has been specifically designed to allow standard maintenance and preparation procedures, such as TRANSFERABLE ENGINE exchange and gobo replacement, without any additional tools, as gobo changes or maintenance work can be done on-site.The onboard patented RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system that automatically removes any moisture detected within the fixture and provides constant monitoring to ensure peak performance.
iESPRITE® runs an ingenious Self Pressure Test to check internal pressure. This self-test, taking less than 3 minutes, provides an error message if gaskets and covers were not replaced correctly or locking screws were incorrectly tightened, ensuring maximum protection.
Their lightweight magnesium alloy covers, with aluminium alloy substructure, provide a dust-free environment for the optics. This eliminates the need for frequent cleaning, routine maintenance, and UV damage to plastic parts. To maintain consistently high lumen output, even with the rigours of outdoor performance, water, dirt, dust, haze, and smoke are repelled from the front lens with our unique parCoat™ hydrophobic, oleophobic-resistant coating. Furthermore, it allows easy removal of deposits without scratching or damage.
By including NFC (Near-Field Communication) technology, you can access setup, diagnostic and performance features, even when the fixture is not powered directly from your mobile device using the Robe Com app.
Outdoor fixtures need to operate in extreme cold. iESPRITE® contains an innovative POLAR+™ technology – a special standby mode with low power consumption, in which the fixture´s sensors and communications channels continue to function. When activated, POLAR+™ automatically maintains an internal temperature level, giving instant operability down to minus 50 degrees centigrade!
iESPRITE® is available with a choice of patented IP65-rated iSE-TE™ 650W White LED TRANSFERABLE ENGINES; HP (High Performance) 6.700 K, 34.000 lm CRI70; HCF (High Colour Fidelity) 6.000 K, 24.000 lm CRI 96.
The identical 9:1 zoom optical system, with a 5.5° to 50° zoom range, provides all the flexibility you need. Our cutting-edge CMY colour mixing system provides beautifully smooth mixing and transitions. Combined with two colour wheels, CRI 80 and 90 filters (HP Engine), and a variable CTO from 3.000 – 6.700 K give iESPRITE® total colour finesse. With the patented Plano4™ four individual plane framing shutters; one rotating fully indexable and one static gobo wheel; an animation wheel; a 6-facet bi-directional variable speed prism and two MagFrost™ 1° and 5° frosts, you have all the creative tools you need. Removing the need for distracting pre-use pan and tilt calibration movement, our patented MAPS™ (Motionless Absolute Positioning System) allows the fixture to fully calibrate while remaining static. Very useful when located within confined spaces.
For those requiring maintained network connectivity, we have Epass™ available as standard. Our REAP™ (Robe Ethernet Access Portal) allows access to fixture information and diagnostics over Ethernet Networks. Perfect for installations requiring remote centralised monitoring of fixture performance. Important for television users, Cpulse™ provides flicker-free management of the latest camera systems.
iESPRITE® is fully compatible with our industry-leading RoboSpot™ remote-controlled follow-spot system.
iESPRITE® – Robe reliability in all weathers.

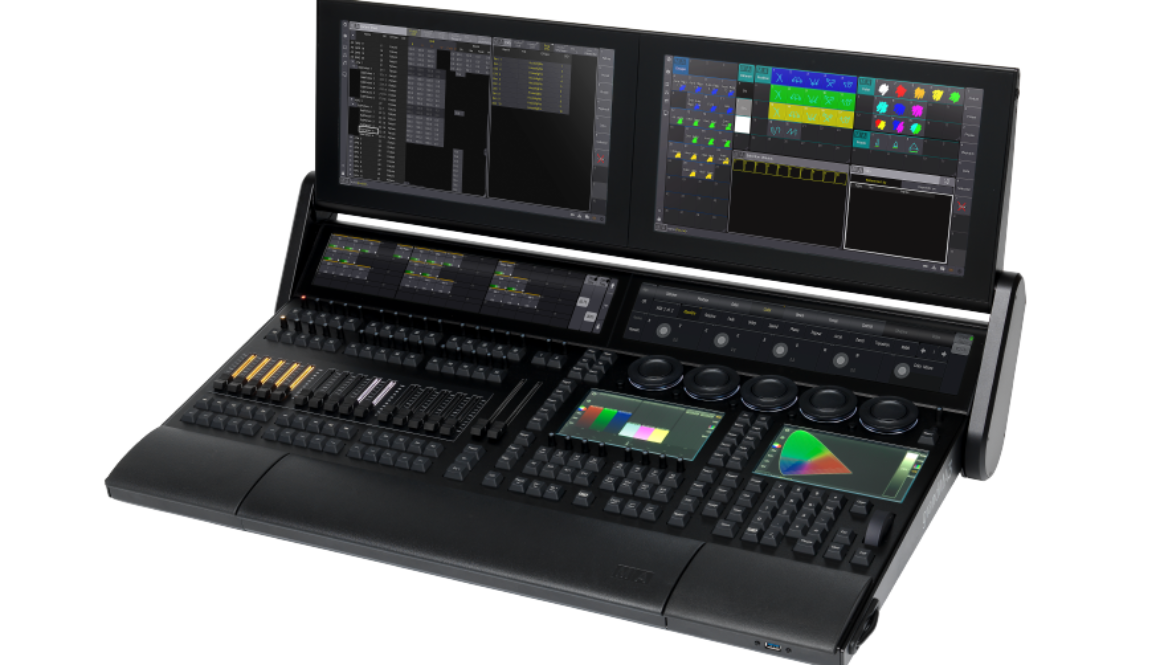

Founded on the legacy of the previous grandMA consoles, the grandMA3 represents a radical re-think of what’s possible from a lighting control platform. The elegant new system-architecture incorporates new fixture, feature and effects-handling at its very heart.
The system features ground-breaking concepts from top industry visionaries, presented within a refined user interface, and is designed to make practical tasks more intuitive.
The physical design detail of the grandMA3 range is extraordinary and focused on delivering the best possible user experience, now and into the future.
The Robe Spiider® – Our super bright LED WashBeam luminaire has truly set the benchmark in performance! Using 18 x 40 Watt and 1 x 60 Watt LEDs, combined with a highly efficient 12,5:1 zoom optical system, ranging from tight 4° Beam to wide 50° Wash, makes the Spiider® the leader in its class. Beautiful convergence of hard edge in-air effects, punchy beams and smooth, homogenized rich colour washes are all encapsulated in the unique Spiider®!
The Spiider® product family truly sets itself apart. With the eye-catching Robe patented MCFE™ – Multi-Coloured Flower Effects – emitting sharp, multi-coloured spikes of light, including variable speed and rotation direction control to further increase the projection of charismatic in-air animations. Dynamic video effects are easily achieved by mapping individual pixels and controlled by DMX desk or media servers via sACN with internal HTP merging, DMX or by Kling-Net protocol. Equipped with Robe’s innovative lens coating technology, the lenses keep bright and clear, with no scratches or marks, providing higher light output for longer intervals between cleaning.
Perfect colour and dimming control are available via RGBW and CMY colour mixing modes; our 18 Bit L3™ Low Light Linearity dimming software for imperceptible fades to black; variable CCT of 2.700K – 8.000K; tungsten emulation simulating the red shift and thermal delay of tungsten lamps for whites from 2.700K – 4.200K; and our DataSwatch™ 237 pre-programmed colour library.
LED a sorgente singola: bianchi perfetti e colori brillanti
200W / LED a 6 colori
flusso luminoso 9.000lm
CRI/Ra 97 / TLCI 98
IP65 interno/esterno
